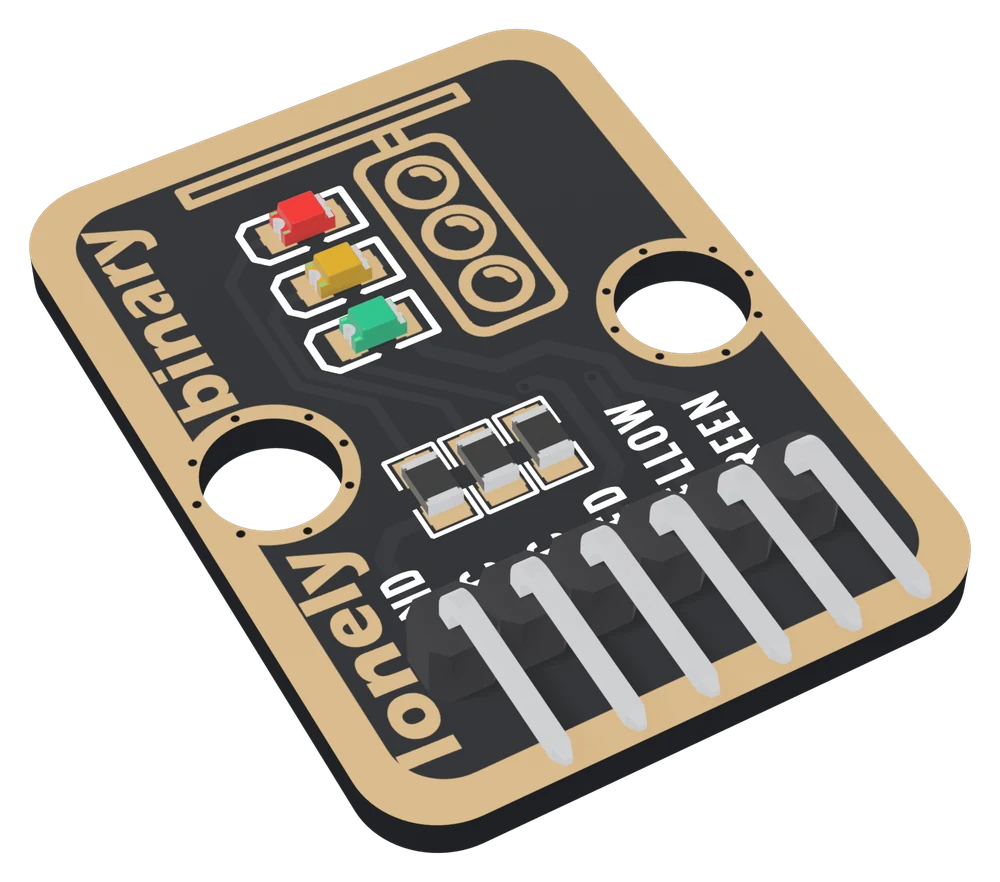

The TK03 at an angle: a black board with a gold-plated border, three tiny LEDs stacked red, yellow and green near the top beside a traffic-light outline, three small resistors in a row below them, two big mounting holes, and a right-angle six-pin header along the near edge labelled GND, NC, NC, RED, YELLOW and GREEN.3D
You have thistk03

Traffic Light

Red, yellow and green LEDs, each with its own 1 kΩ resistor and its own pin, sharing one GND: three digital outputs, and the first sketch that has to remember what it is doing.

Current
3.1mA red from 5 V, about
Resistors
1kΩ on each light
LEDs
0805red, yellow, green
Wires
4GND, RED, YELLOW, GREEN
Start here · 01 The six pinsOpen the board in 3D

Turn it over and see which hole drives which light: GND and one pin per colour. The two NC holes are connected to nothing.

Product questions & answers ↓

The whole handbook8 articles · 40 minQuick referencePDF · 483 KBTraffic Light model (GLB)GLB · 971 KBTraffic Light CAD (STEP)ZIP · 927 KBTraffic Light drawing (PDF)PDF · 2.3 MBTraffic Light drawing (DXF)ZIP · 34 KBRed LED datasheetPDF · datasheet.lcsc.comYellow LED datasheetPDF · datasheet.lcsc.comGreen LED datasheetPDF · datasheet.lcsc.comPinout and specsThe pin table, and the questions people ask first
