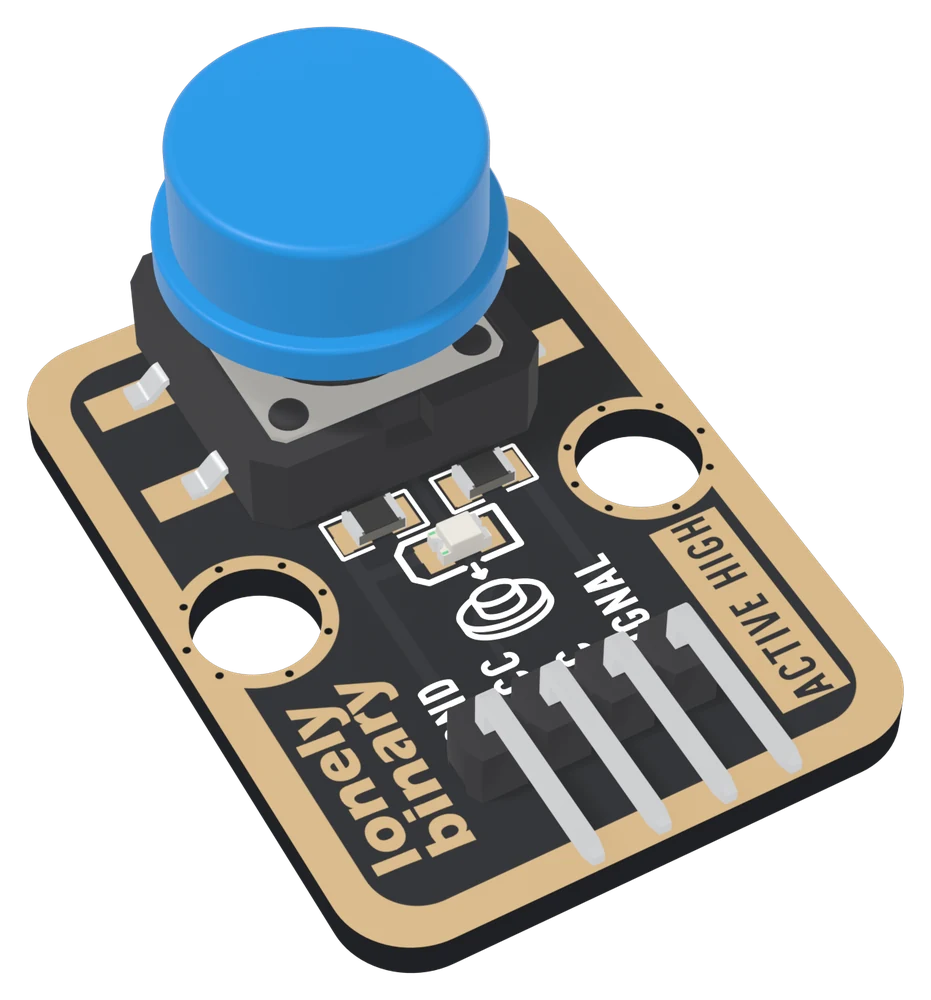

The TK04 at an angle: a black board with a gold-plated border, a square black tactile switch with a large round blue cap near the top, a small LED and two tiny resistors below it, two big mounting holes, ACTIVE HIGH up the right-hand edge, and a right-angle four-pin header along the near edge labelled GND, VCC, NC and SIGNAL.

You have thistk04

Push Button

A 12 mm momentary push button with its 10 kΩ pull-down and a red press light already fitted: SIGNAL reads HIGH while the button is down. The first input in the kit, and the module that teaches debouncing.

Switch: 12× 12 mm tactile, blue cap
Pull-down: 10kΩ fitted, pressed reads HIGH
VCC: 3.3or 5 V, to match your board
Wires: 3GND, VCC, SIGNAL

Start here · 01 The four pins Open the board in 3D

Turn it over and see the three holes to wire: GND, VCC and SIGNAL. VCC sets the voltage SIGNAL reads when pressed, so match it to your board. NC is connected to nothing.

Product questions & answers ↓

The whole handbook9 articles · 40 min Quick referencePDF · 494 KB Push Button model (GLB)GLB · 1.4 MB Push Button CAD (STEP)ZIP · 939 KB Push Button drawing (PDF)PDF · 2.2 MB Push Button drawing (DXF)ZIP · 50 KB Switch drawingPDF · datasheet.lcsc.com Pinout and specsThe pin table, and the questions people ask first
