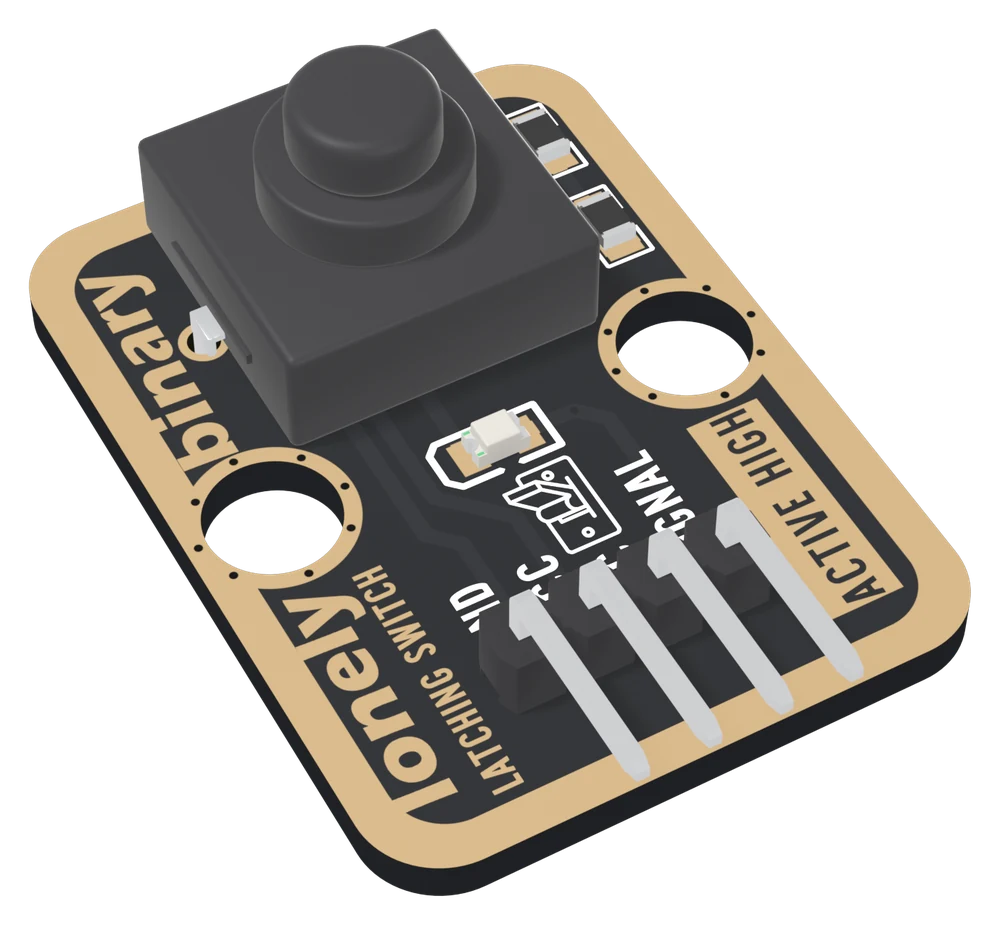

The TK05 at an angle: a black board with a gold-plated border, a square black self-locking switch with a round black button near the top, two tiny resistors beside it, a small LED below, two big mounting holes, LATCHING SWITCH and ACTIVE HIGH printed along the edges, and a right-angle four-pin header labelled GND, VCC, NC and SIGNAL.

You have thistk05

Latching Button

A push-on, push-off switch with its pull-down and a red indicator LED already fitted: one press turns SIGNAL HIGH and it stays HIGH, through a reset or a power cut, until the next press.

Switch: 12× 12 mm, push on, push off
Pull-down: 10kΩ fitted, on reads HIGH
Force: 700gf, a firm press
Wires: 3GND, VCC, SIGNAL

Start here · 01 The four pins Open the board in 3D

Turn it over and see the three holes to wire: GND, VCC and SIGNAL. VCC sets the voltage SIGNAL reads when the switch is on, so match it to your board. NC is connected to nothing.

Product questions & answers ↓

The whole handbook9 articles · 40 min Quick referencePDF · 470 KB Latching Button model (GLB)GLB · 911 KB Latching Button CAD (STEP)ZIP · 772 KB Latching Button drawing (PDF)PDF · 2.2 MB Latching Button drawing (DXF)ZIP · 32 KB Pinout and specsThe pin table, and the questions people ask first
