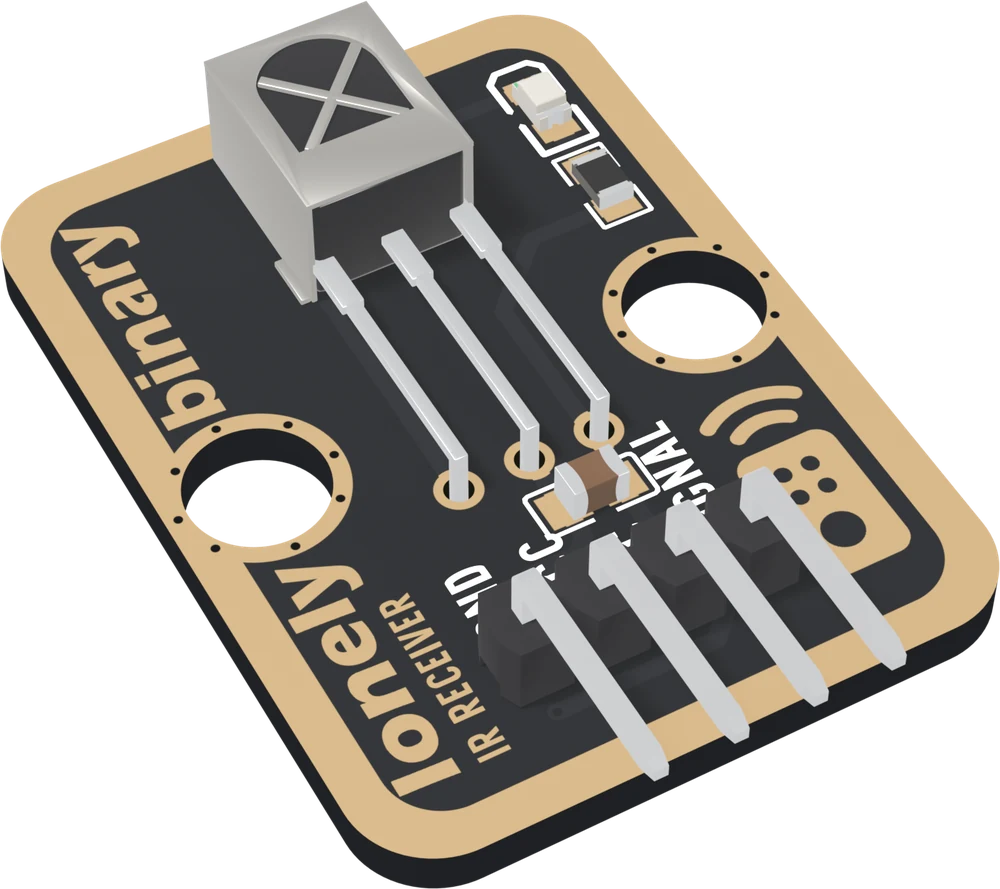

The TK15 at an angle: a black board with a gold border, a steel box with an X-shaped window lying flat near the top and its three legs running down to three holes, an LED and a resistor at the top right, lonely binary and IR RECEIVER along the left edge, two big mounting holes, and a right-angle four-pin header labelled GND, VCC, NC and SIGNAL.

You have thistk15

IR Receiver

A Vishay TSOP18138 38 kHz infrared receiver on a TinkerBlock board: SIGNAL idles HIGH and goes LOW while a remote sends, and the IRremote library turns those lows into an address and a command.

Tuned to: 38kHz
VCC: 2.0–5.5V, to match your board
SIGNAL: LOWwhile a remote sends
Sees: ±45degrees off axis

Start here · 01 The carrier is the trick Open the board in 3D

Turn it over and see the three holes to wire: GND, VCC and SIGNAL. SIGNAL idles at VCC and drops LOW while a remote sends, so match VCC to your board.

Product questions & answers ↓

The whole handbook11 articles · 55 min Quick referencePDF · 522 KB IR Receiver model (GLB)GLB · 933 KB IR Receiver CAD (STEP)ZIP · 2.5 MB IR Receiver drawing (PDF)PDF · 2.3 MB IR Receiver drawing (DXF)ZIP · 55 KB DatasheetPDF · vishay.com Pinout and specsThe pin table, and the questions people ask first

Community

Product questions

See what other owners have asked, and read their solutions.

Ask a question ↗

IR Receiver

Loading discussions…

View all on the community ↗Read here. Sign in to the community to post or reply.

Need another

Comes in these kits — not sold separately

TinkerBlock 46-Piece Sensor Module Kit TinkerBlock IR Remote Mastery Kit

Order or missing parts?

Email us or reply to your order, and quote tk15 — that identifies the product. If something is missing from the bag, your order is the record of what shipped.

Take it with you

Point a phone camera at the code and this page opens there. It is the same address as the one printed on your box, so it is also what to show someone you are passing the board to.
