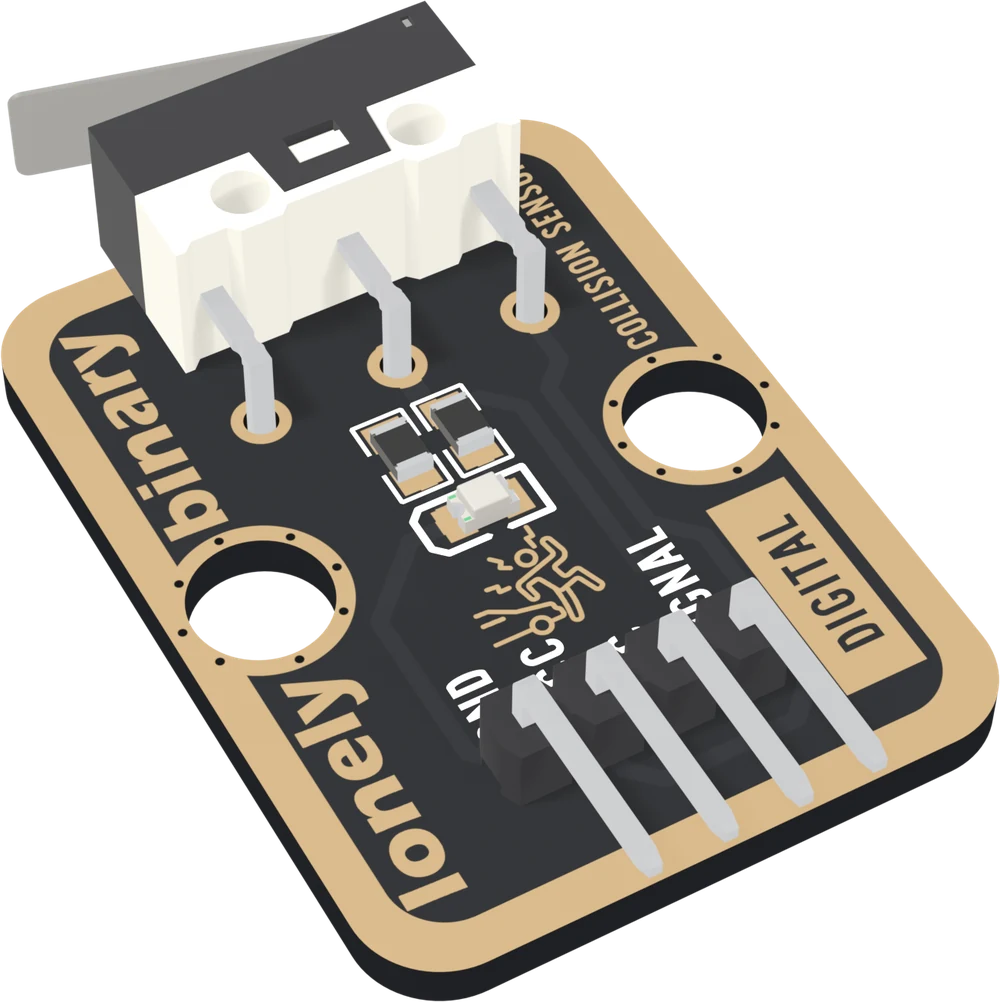

The TK17 at an angle: a black board with a gold-plated border, a black and white lever microswitch lying flat along the far edge with a flat metal lever reaching past it, two small resistors and a tiny LED in the middle, two big mounting holes, lonely binary along the left edge, a boxed DIGITAL along the right, and a right-angle four-pin header along the near edge labelled GND, VCC, NC and SIGNAL.3D
You have thistk17

Collision Sensor

A lever microswitch with its 10 kΩ pull-down and a red hit light already fitted: SIGNAL reads HIGH while the lever is pushed in. The bumper for a TinkerBlock robot, and the sense that never reports a wall that is not there.

Lever
1.4mm of travel to click, about
Pull-down
10kΩ fitted, a hit reads HIGH
VCC
3.3or 5 V, to match your board
Wires
3GND, VCC, SIGNAL

Turn it over and see the three holes to wire: GND, VCC and SIGNAL. VCC sets the voltage SIGNAL reads on a hit, so match it to your board. NC is connected to nothing.
