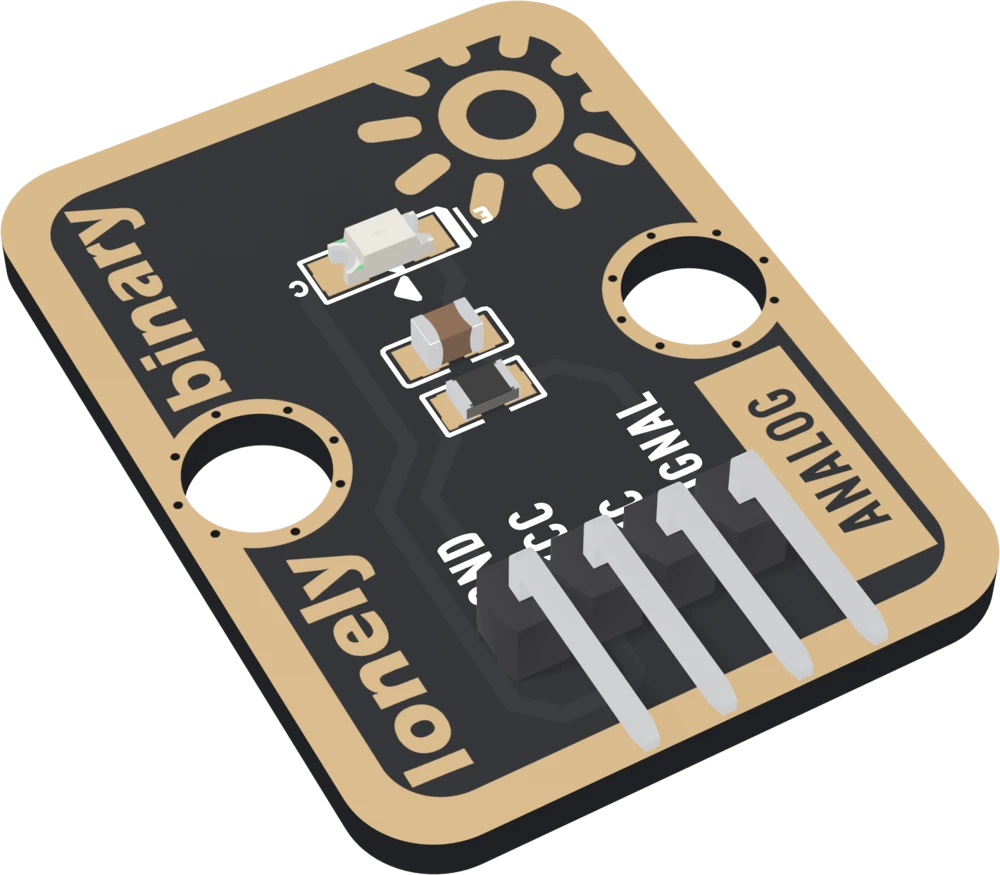

The TK20 at an angle: a black board with a wide gold border, a small clear light sensor near the top with C and E printed beside it, a capacitor and a resistor below it, a gold sun at the top right, lonely binary along the left edge, ANALOG in a box on the right, and a right-angle four-pin header labelled GND, VCC, NC and SIGNAL.3D
You have thistk20

Ambient Light Sensor

A phototransistor and a 4.7 kΩ resistor on a TinkerBlock board: light makes a current, the resistor turns it into a voltage, and SIGNAL rises with the light. A lit room reads low on the scale, bright light flattens just under VCC, and it sees near infrared best.

At 100 lux
0.24V, brighter reads higher
Tops out near
1230lux from 3.3 V
Most sensitive at
850nm, near infrared
VCC
3.3or 5 V, to match your board
Start here · 01 The four pinsOpen the board in 3D

Turn it over and see the three holes to wire: GND, VCC and SIGNAL. The light sensor is the small clear part at the top; SIGNAL rises with the light and tops out just under VCC, so match VCC to your board.
