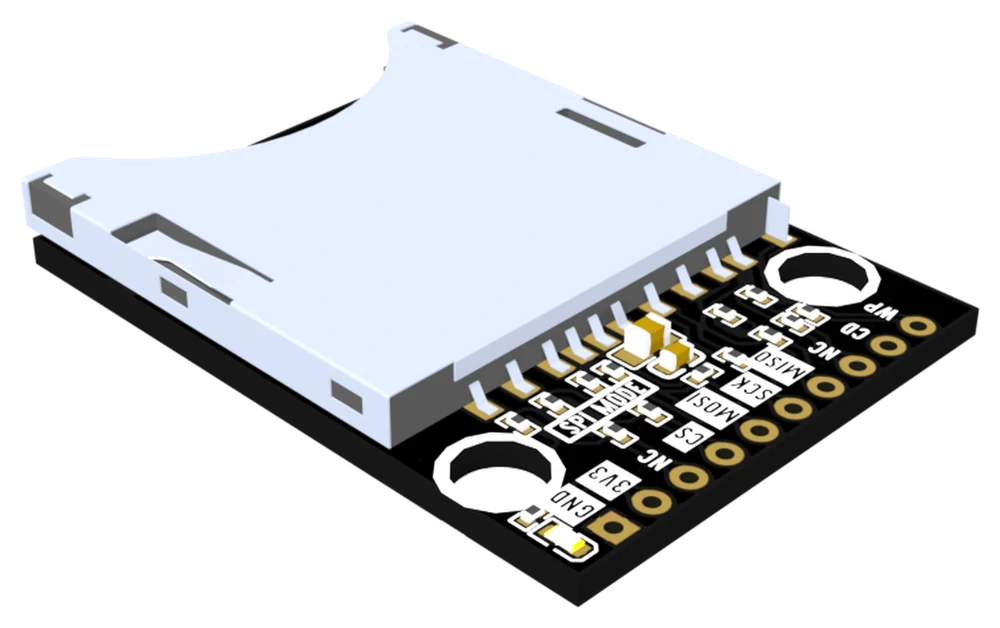

The full-size SD card reader seen from above at an angle: a black board almost covered by a metal push-push SD socket, two large round mounting holes, and a row of ten gold-plated holes along the near edge labelled GND, 3V3, NC, CS, MOSI, SCK, MISO, NC, CD and WP.

You have thissd

SD Card Reader, 3.3 V, SPI and 4-bit SD, with CD and WP

Two 3.3 V card reader boards with the SD bus brought out in full. What the two NC pins really are, which of SPI, 1-bit and 4-bit to use, what each measured, and the wiring for all three.

Supply: 3.3V only
Holes: 10at 2.54 mm
Switches: 2CD and WP

Start here · 01 Why a card and not the flash you already have Open the board in 3D

Turn it over, switch between SPI, 1-bit and 4-bit, and see which of the ten holes each mode needs, including the two printed NC and the two switches, CD and WP.
