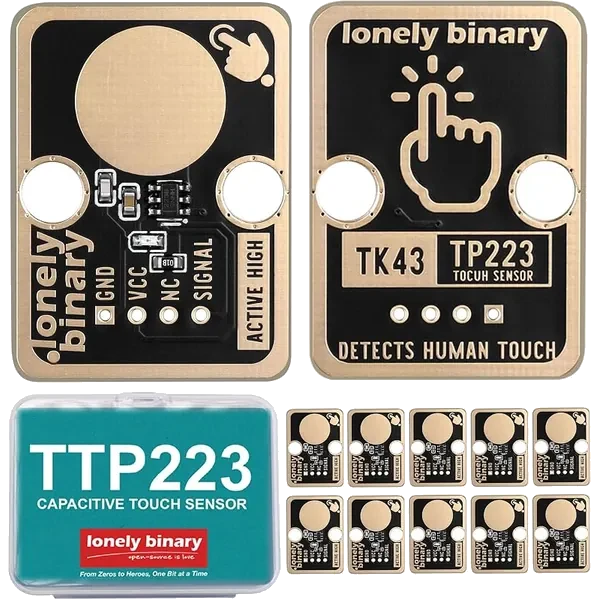

The 12-pack: the front and back of the touch sensor board, printed GND VCC NC SIGNAL and ACTIVE HIGH on the front and TK43, TP223 and DETECTS HUMAN TOUCH on the back, above a teal hinged case printed TTP223 CAPACITIVE TOUCH SENSOR beside ten more of the boards in two rows.
You have this

12-Pack TTP223 Capacitive Touch Sensor

A 12 mm gold pad and a TTP223 touch chip on a TinkerBlock board: SIGNAL is HIGH while a finger is on the pad, through plastic or glass as well as bare, and LOW the rest of the time. Momentary and active-high in copper, with no jumper. SIGNAL is the chip's own output from VCC, so VCC goes to your board's logic supply, and the pad must be left alone for the half second after power-up.

Boards
12and a case
Supply
2.0–5.5V
Wires
3GND, VCC, SIGNAL
Response
60ms at most, awake
Start here · 01 The four pinsThe reference

Product questions & answers ↓

The whole handbook9 articles · 40 minQuick referencePDF · 411 KBTouch Sensor model (GLB)GLB · 952 KBTouch Sensor CAD (STEP)ZIP · 699 KBDatasheetPDF · files.seeedstudio.comPinout and specsThe pin table, and the questions people ask first
