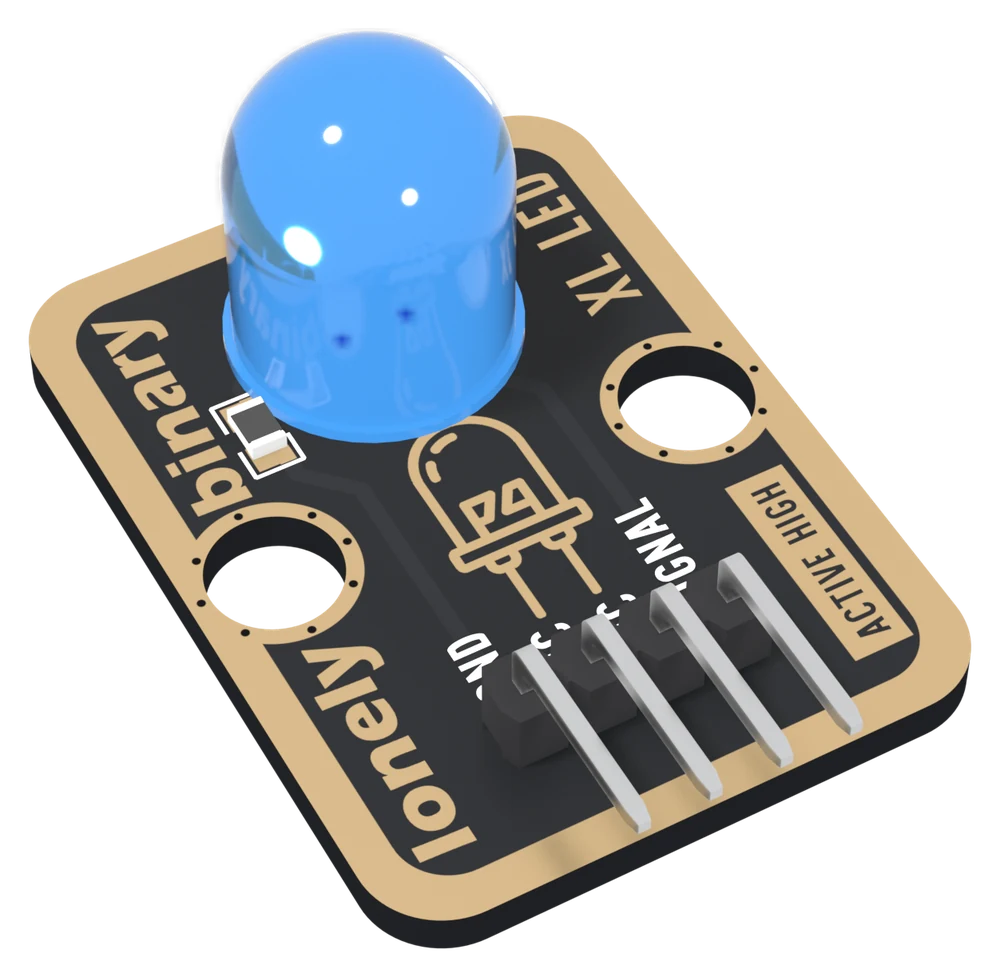

The TK01 at an angle: a black board with a gold-plated border and a large round blue LED standing up near the top, a small black resistor to its left, two big mounting holes, XL LED printed along the right-hand edge above a boxed ACTIVE HIGH, and a right-angle header whose four pins point out past the bottom edge.

You have thistk01

XL LED

A 10 mm blue LED with its 150 Ω resistor already fitted, driven by one pin: the first output most people ever drive, and the light every later lesson uses to show that something happened.

Current: 13mA from 5 V, 2 from 3.3 V
Resistor: 150Ω, already fitted
LED: 10mm, blue
Wires: 2GND and SIGNAL

Start here · 01 The four pins Open the board in 3D

Turn it over, switch between on/off and brightness, and see that only GND and SIGNAL need a wire: the two NC holes are connected to nothing.

Product questions & answers ↓

The whole handbook9 articles · 40 min Quick referencePDF · 514 KB XL LED model (GLB)GLB · 811 KB XL LED CAD (STEP)ZIP · 577 KB XL LED drawing (PDF)PDF · 2.4 MB XL LED drawing (DXF)ZIP · 40 KB Pinout and specsThe pin table, and the questions people ask first
