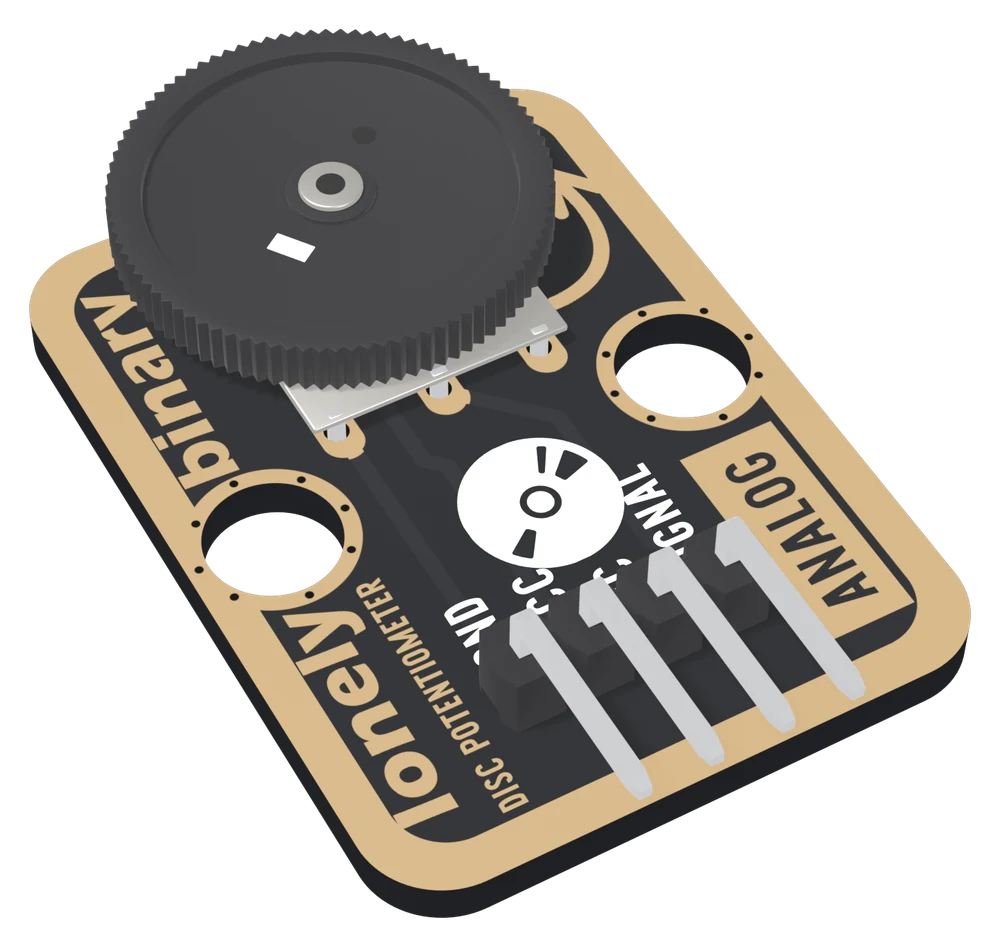

The TK07 at an angle: a black board with a gold-plated border, a black knurled thumbwheel potentiometer lying flat near the top and overhanging the top edge, a turn arrow, a disc icon, two big mounting holes, DISC POTENTIOMETER and ANALOG printed along the edges, and a right-angle four-pin header labelled GND, VCC, NC and SIGNAL.

You have thistk07

Disc Potentiometer

A 10 kΩ thumbwheel potentiometer wired as a voltage divider: turn the wheel and SIGNAL runs from 0 V to VCC, read by one analog pin. The wheel lies flat and overhangs the board's edge, so a thumb turns it from the side.

Track: 10kΩ thumbwheel
Wheel: 16mm across
VCC: 3.3or 5 V, the top of the range
Wires: 3GND, VCC, SIGNAL

Start here · 01 The four pins Open the board in 3D

Turn it over and see the three holes to wire: GND, VCC and SIGNAL, the wiper. VCC is the top of the range, so match it to your board.
