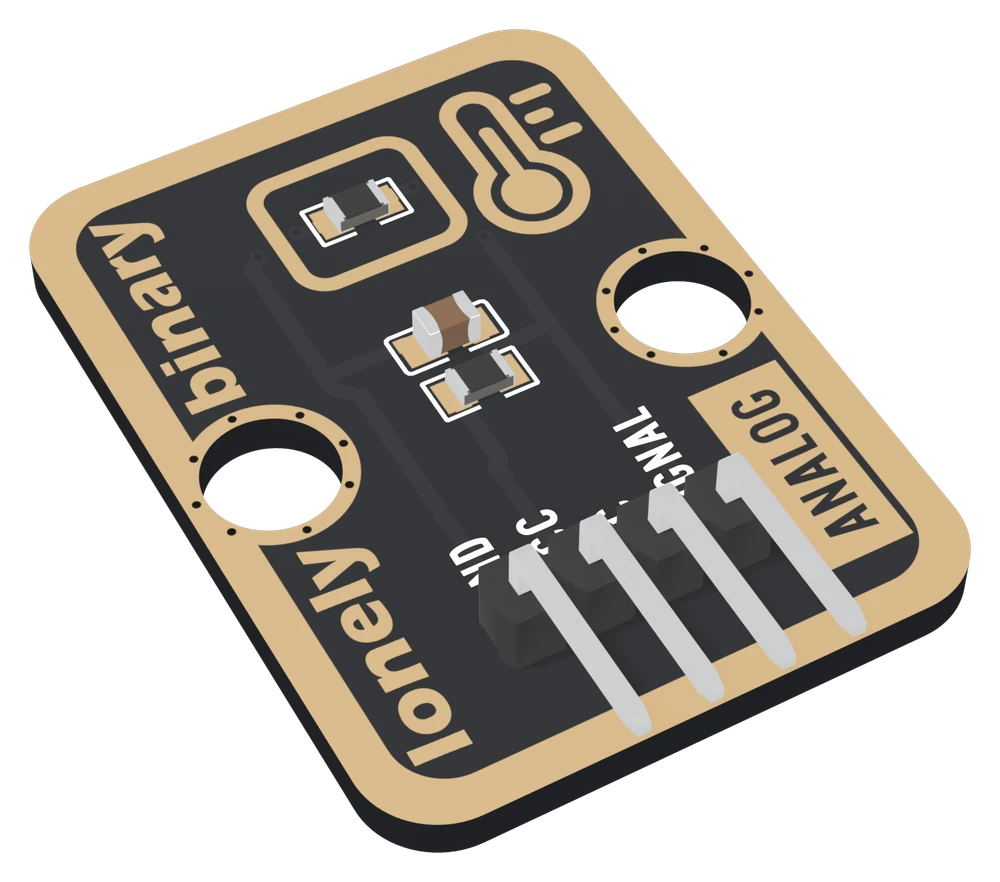

The TK12 at an angle: a black board with a gold-plated border, a tiny surface-mount thermistor inside a boxed outline near the top beside a thermometer icon, a resistor and a capacitor below it, ANALOG printed on the edge, two big mounting holes, and a right-angle four-pin header labelled GND, VCC, NC and SIGNAL.

You have thistk12

NTC Thermistor

A 10 kΩ NTC thermistor in a divider with a fixed 10 kΩ: SIGNAL is half of VCC at 25 °C and falls as it warms. Read it on any analog pin and turn it into degrees with two lines of arithmetic.

At 25 °C: 10kΩ, ±1 %
B: 3950K
VCC: 3.3or 5 V, to match your board
Wires: 3GND, VCC, SIGNAL

Start here · 01 The four pins Open the board in 3D

Turn it over and see the three holes to wire: GND, VCC and SIGNAL. SIGNAL is half of VCC at 25 °C and falls as it warms, so match VCC to your board.
