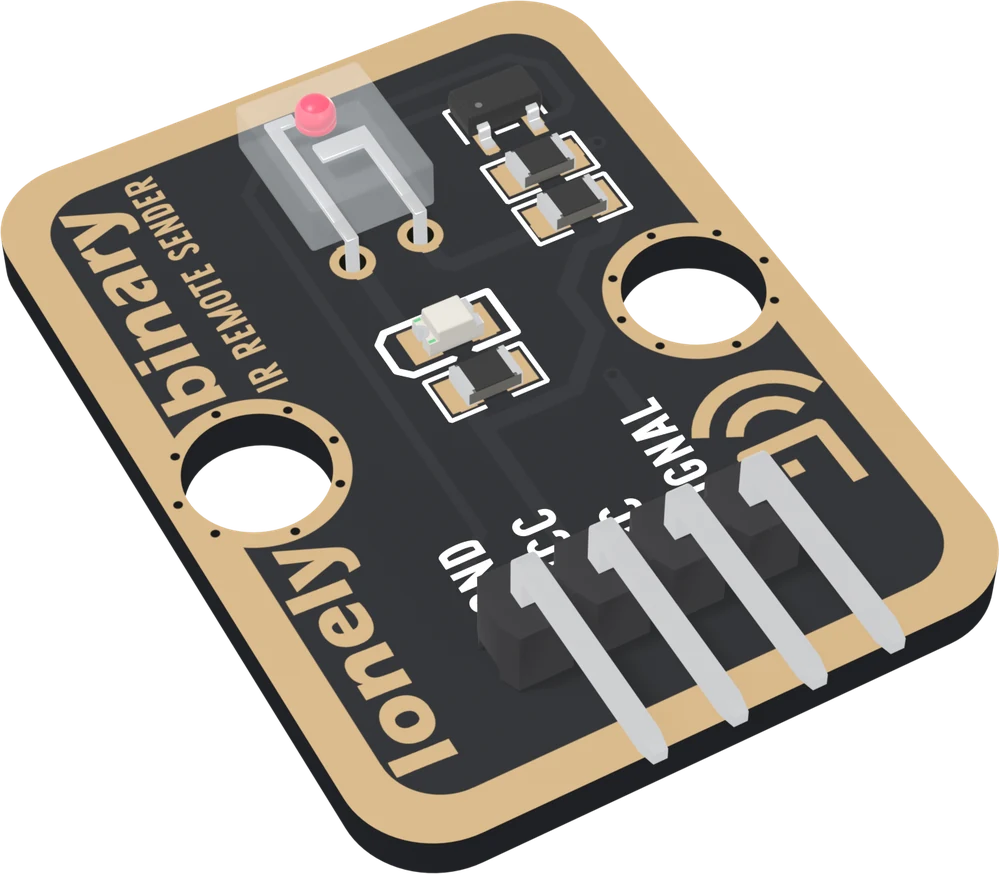

The TK16 at an angle: a black board with a gold border, a small clear infrared LED lying flat near the top with a lens in its upper face, a three-legged transistor and two resistors at the top right, an LED and a resistor in the middle, lonely binary and IR REMOTE SENDER along the left edge, two big mounting holes, and a right-angle four-pin header labelled GND, VCC, NC and SIGNAL.

You have thistk16

IR Sender

An Everlight IR908-7C 940 nm infrared LED, switched by a transistor, on a TinkerBlock board. SIGNAL HIGH lights it; your microcontroller makes the 38 kHz carrier, and one 150 Ω resistor decides how far it reaches.

LED current: 24mA from 5 V
VCC: 3.3 or 5V; 5 V reaches further
SIGNAL: HIGHlights the LED
Beam: ±20degrees off axis

Start here · IR Sender Open the board in 3D

Turn it over and see the three holes to wire: GND, VCC and SIGNAL. SIGNAL HIGH lights the LED; VCC only feeds the LEDs, so 5V is safe beside any board.

Product questions & answers ↓

Quick referencePDF · 502 KB IR Sender model (GLB)GLB · 1013 KB IR Sender CAD (STEP)ZIP · 1.8 MB IR Sender drawing (PDF)PDF · 2.2 MB IR Sender drawing (DXF)ZIP · 55 KB DatasheetPDF · everlight.com Pinout and specsThe pin table, and the questions people ask first
