Dual Axis Joystick

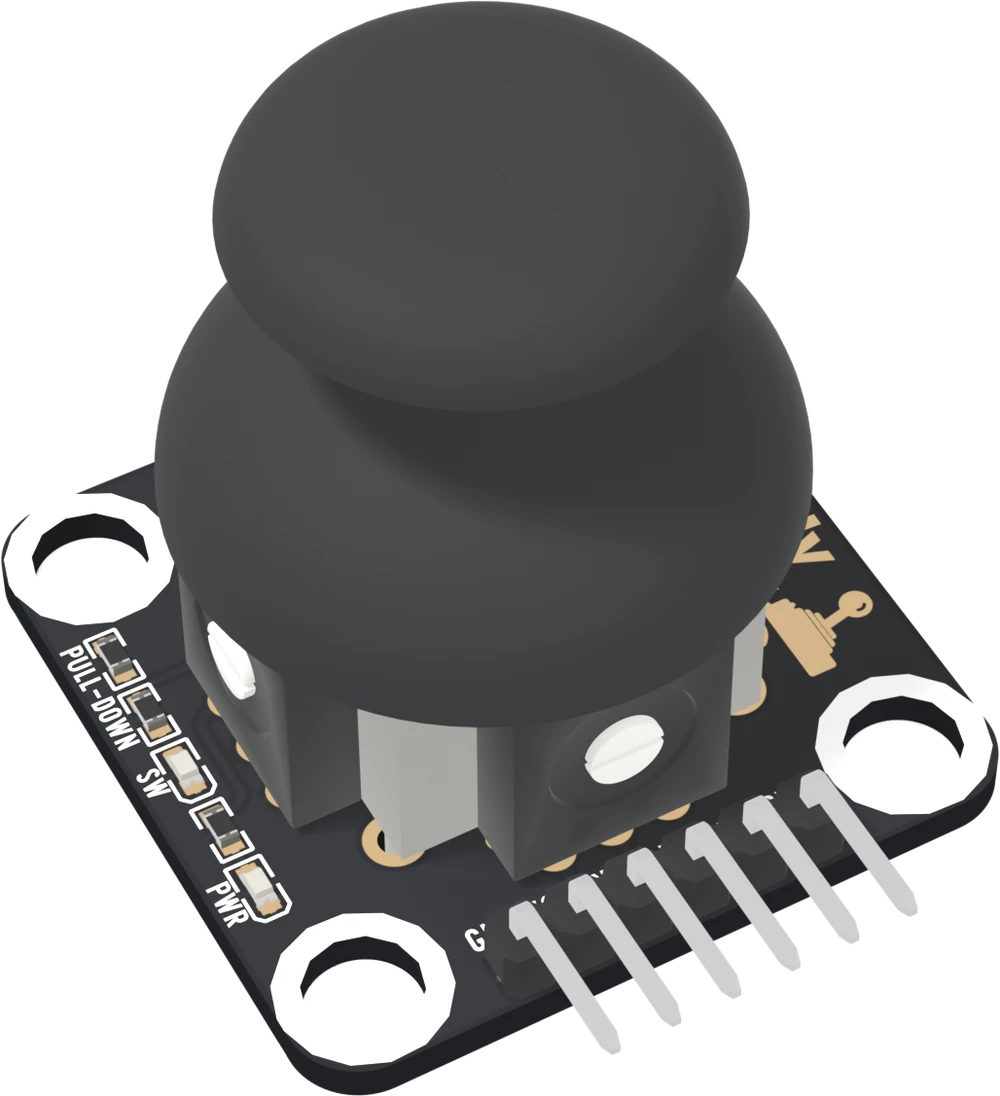

A thumbstick on a square TinkerBlock board, on six pins: GND, VCC, NC, X, Y and SW. X and Y are two potentiometers from VCC to GND, read on analog pins; SW is the click under the stick, LOW at rest and HIGH when pressed, with its own pull-down. Every line reaches VCC, so VCC is your board's logic voltage. A PWR light and an SW light show power and each click.

Board

31.0 × 31.0mm, square

Supply

3.3 / 5V, to match your board

Click

Active HIGHpulled down on the board

Wire

5of 6 pins

Turn it over and see the six holes: GND, VCC, NC, X, Y and SW. X and Y are analog, SW reads HIGH when you press the stick, and VCC must match your board.
