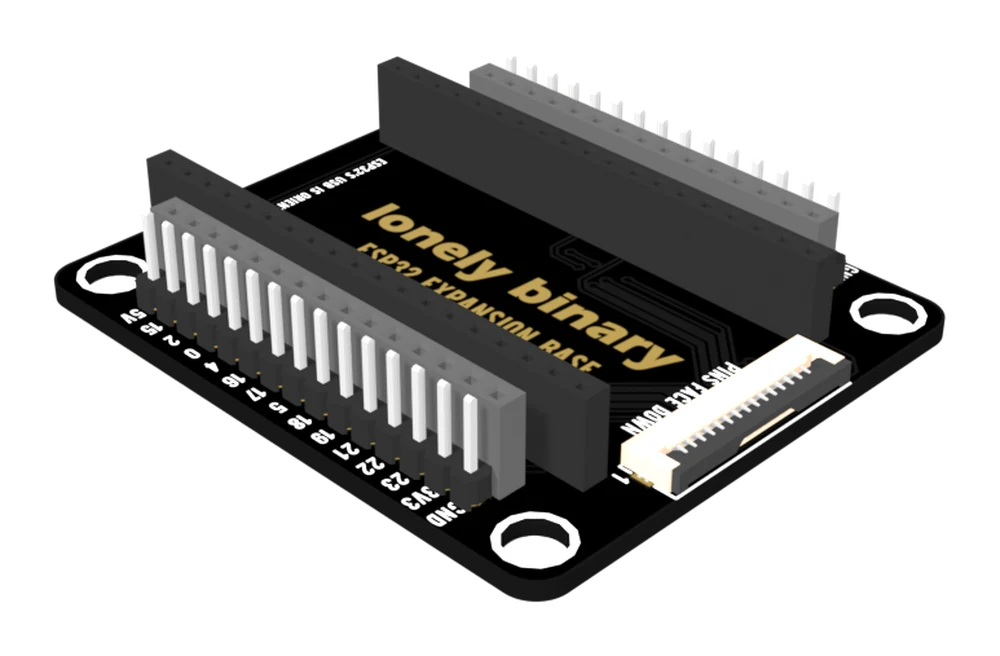

The ESP32 expansion base seen from above at an angle: a black board with four large corner mounting holes, two tall sockets down the middle for the ESP32, two 2.54 mm strips along each long edge with the pin names GND, 3V3, 36, 39, 34, 35, 32, 33, 25, 26, 27, 14, 12, 13 and 5V printed beside them, and a white fifteen-way ribbon socket at the far end.

You have this32base

ESP32 Expansion Base (2.54 mm)

Four bases for the 38-pin Lonely Binary ESP32. Which pins each one brings out, which way round the board goes, the fifteen-way display port they all share, and the twenty-four LEDs on the PinPulse.

GPIOs out: 24
Rows a side: 2 × 15at 2.54 mm
Display port: 15way FPC

Start here · 03 The expansion base The reference
