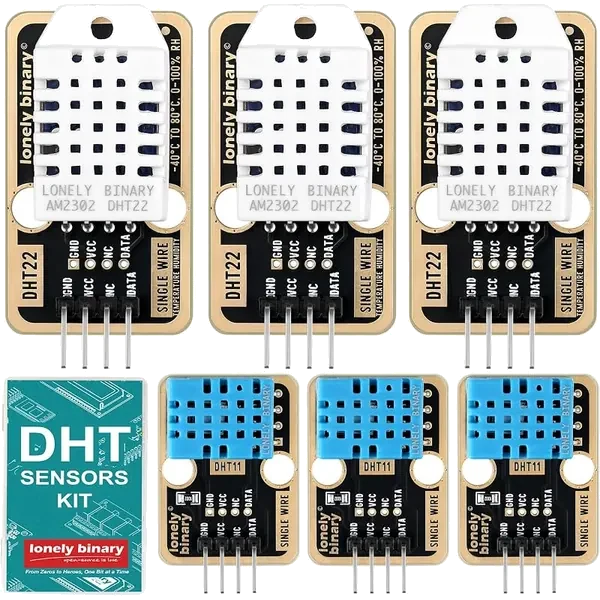

The DHT sensor kit: three boards with large white sensor cages printed LONELY BINARY AM2302 DHT22, and three smaller boards with blue DHT11 cages, all on black PCBs with gold-plated borders, beside a teal box printed DHT SENSORS KIT.

You have this

DHT Sensor Kit: 3 × DHT22 and 3 × DHT11

Six single-wire temperature and humidity sensors on TinkerBlock boards: three DHT22s on the TK39, −40 to 80 °C to ±0.5 °C in tenths, and three DHT11s on the TK38, 0 to 50 °C to ±2 °C in whole degrees. The same four pins, the same fitted 10 kΩ pull-up and the same library; one word in the sketch says which one you wired.

Boards: 3 + 3DHT22 and DHT11
Wires: 3GND, VCC, DATA

Start here · 01 DHT11 or DHT22 What is in the box

Product questions & answers ↓

The whole handbook9 articles · 45 min Quick referencePDF · 582 KB Pinout and specsThe pin table, and the questions people ask first

In this box

The TK39 at an angle: a black board with a gold border and a large white DHT22 sensor cage with a grid of square vents lying over its right half, four sensor leads soldered beside it, DHT22, GND, VCC, NC and DATA printed on the left, SINGLE WIRE and TEMPERATURE HUMIDITY along the bottom, -40°C TO 80°C, 0-100% RH beside the cage, and a right-angle four-pin header out of the left edge.

DHT22 Temperature and Humidity Sensor

Temperature: ±0.5°C, −40 to 80 °C
Humidity: ±2% RH, 0 to 100 %
Wires: 3GND, VCC, DATA
Supply: 3.3 to 6V; use your logic voltage

Open the board in 3D

Quick referencePDF · 360 KB DHT22 block model (GLB)GLB · 1021 KB DHT22 block CAD (STEP)ZIP · 917 KB DatasheetPDF · sparkfun.com CodeZIP · 1016 B

This one on its own /p/tk39

The TK38 at an angle: a black board with a gold border and a blue DHT11 sensor cage with a grid of square vents lying flat across its top, two round mounting holes, DHT11 printed under the cage, GND, VCC, NC and DATA over four pads, a small resistor, lonely binary up the left edge, SINGLE WIRE up the right, and a right-angle four-pin header out of the front edge.

DHT11 Temperature and Humidity Sensor

Temperature: ±2°C, 0 to 50 °C
Humidity: ±5% RH, 20 to 80 %
Wires: 3GND, VCC, DATA
Supply: 3 to 5.5V; use your logic voltage

01 Two numbers, one pin Open the board in 3D

Quick referencePDF · 395 KB DHT11 block model (GLB)GLB · 930 KB DHT11 block CAD (STEP)ZIP · 738 KB DatasheetPDF · cdn-shop.adafruit.com

This one on its own /p/tk38

Community

Product questions

See what other owners have asked, and read their solutions.

Ask a question ↗

DHT Sensor Kit: 3 × DHT22 and 3 × DHT11

Loading discussions…

View all on the community ↗Read here. Sign in to the community to post or reply.

Need another

DHT Sensor Kit: 3 × DHT22 and 3 × DHT11

Buy direct Buy on Amazon

Order or missing parts?

Email us or reply to your order, and quote dht — that identifies the product. If something is missing from the bag, your order is the record of what shipped.

Take it with you

Point a phone camera at the code and this page opens there. It is the same address as the one printed on your box, so it is also what to show someone you are passing the board to.
