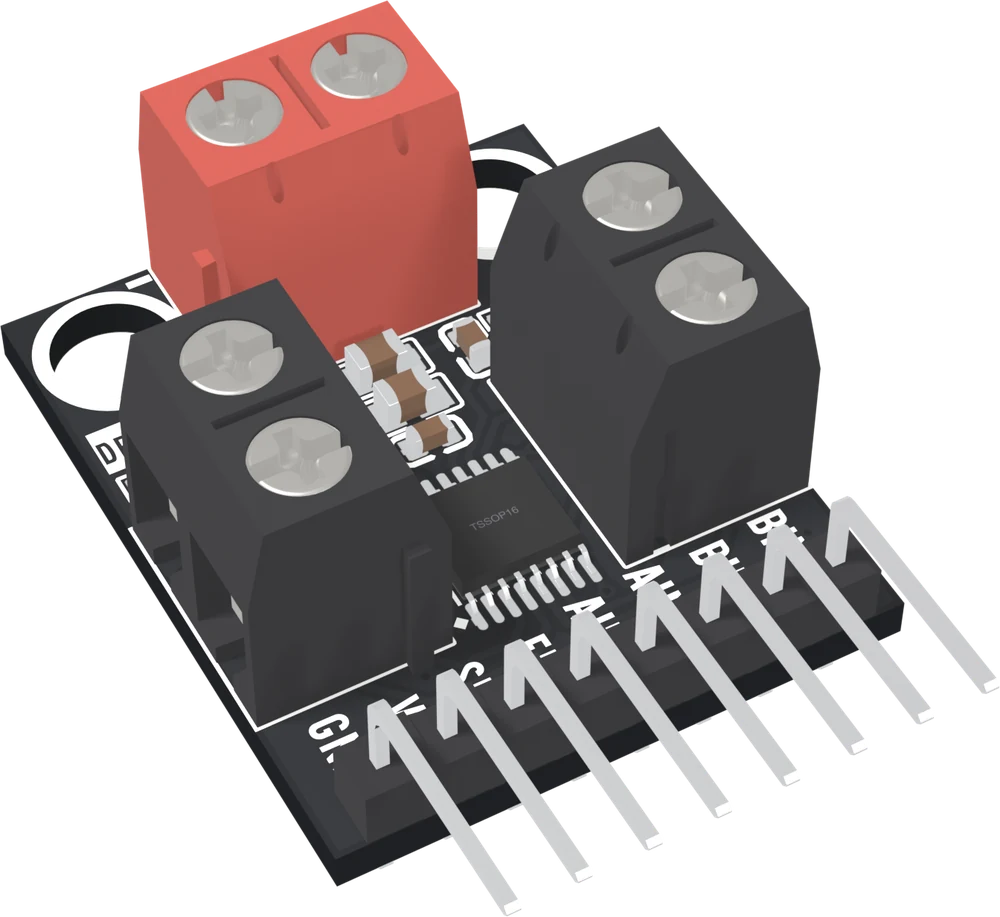

The DRV8833 board at an angle with its connectors soldered on: a red two-way screw terminal for power at the top, a black two-way screw terminal for each motor on the left and right, the chip between them, and a right-angle eight-pin header along the bottom edge.3D
You have thisdrv8833

DRV8833 Dual Motor Driver

Two DC motors, or one stepper, from four GPIO pins. The board ships bare, the sleep pin is asleep until you drive it, and the red LED only says the supply is there.

Supply VM
2.7–10.8V
Channels
2× H-bridge
Trip
2–3.3A
SLP high at
2.5V
Start here · 01 What you are holdingOpen the board in 3D

Turn it over and see which holes to wire for two motors, one motor or a stepper. SLP is on every list: unwired, the chip is asleep.

Product questions & answers ↓

The whole handbook11 articles · 55 minQuick referencePDF · 631 KBDatasheetPDF · ti.comPinout and specsThe pin table, and the questions people ask first
Model files and drawings

The board as it comes out of the box: the chip and its small parts fitted, every connector hole empty.

Bare model (GLB)GLB · 2.2 MBBare CAD (STEP)ZIP · 2.4 MBBare drawing (PDF)PDF · 2.6 MBBare drawing (DXF)ZIP · 55 KB
Community

Product questions

See what other owners have asked, and read their solutions.

Ask a question ↗

DRV8833 Dual Motor Driver

Loading discussions…

View all on the community ↗Read here. Sign in to the community to post or reply.
Need another

Not on general sale yet. Reply to your order and we will sort out a spare — quote drv8833.

Order or missing parts?

Email us or reply to your order, and quote drv8833 — that identifies the product. If something is missing from the bag, your order is the record of what shipped.

Take it with you

Point a phone camera at the code and this page opens there. It is the same address as the one printed on your box, so it is also what to show someone you are passing the board to.
