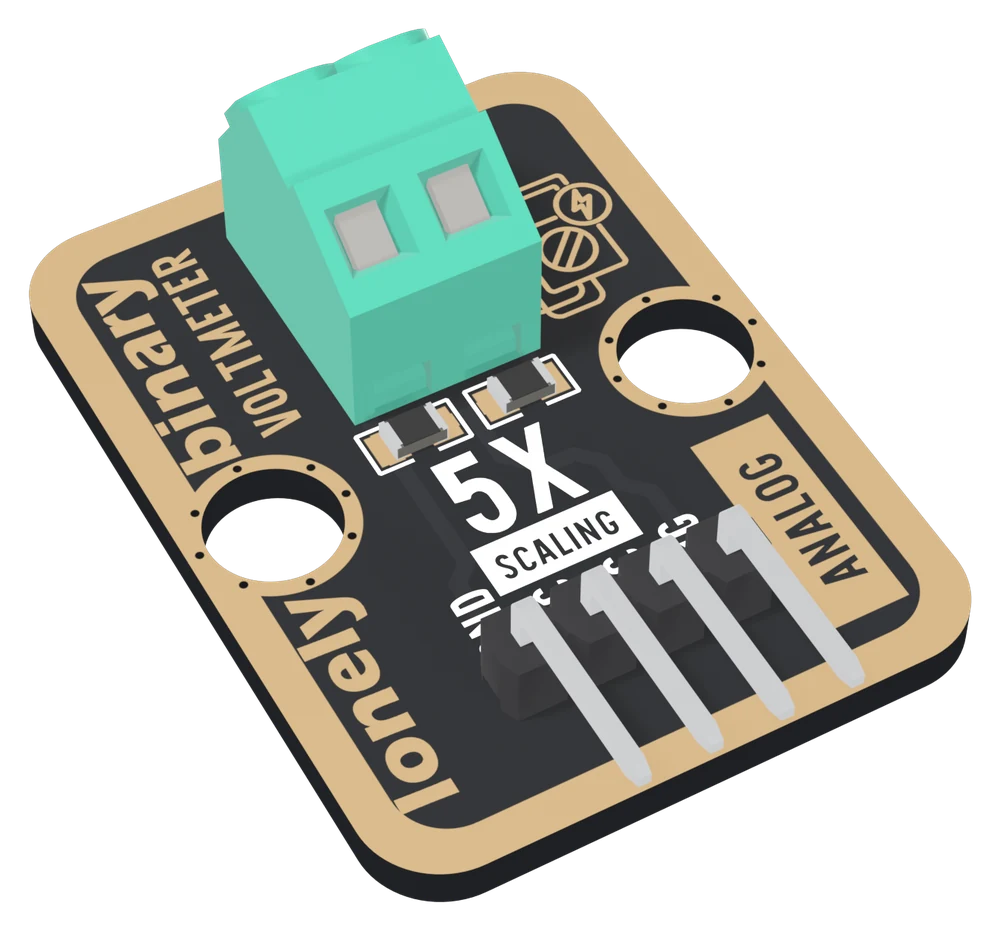

The TK09 at an angle: a black board with a gold-plated border, a teal-green two-way screw terminal near the top beside a multimeter icon, two tiny resistors, 5X SCALING printed large, VOLTMETER and ANALOG along the edges, two big mounting holes, and a right-angle four-pin header labelled GND, NC, NC and SIG.

You have thistk09

Voltmeter

A 30 kΩ and 7.5 kΩ divider behind a two-screw terminal: SIG is exactly one fifth of the input, so an analog pin can read up to 25 V on a 5 V board and about 15.5 V on a 3.3 V one. DC only, measured from GND.

Scaling: 5to 1
Up to: 25V on a 5 V board
Load: 37.5kΩ across the input
Wires: 2GND and SIG

Start here · 01 The four pins Open the board in 3D

Turn it over and see the two holes to wire, GND and SIG, and which screw is which: GND at the header's GND end, the input at the SIG end. There is no VCC.
