4-Direction Tilt Sensor

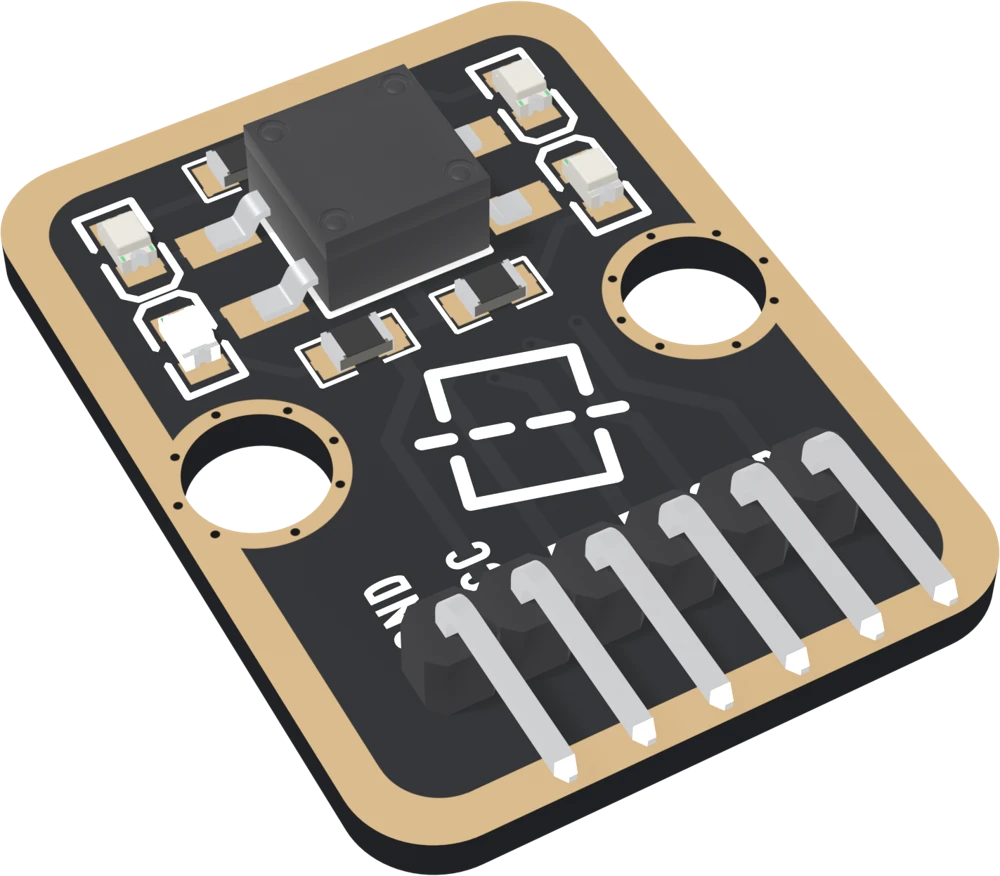

One metal roller in a square switch with four corner contacts, on a TinkerBlock board: tip an edge down and the roller joins that side's two lines. Your board finds which pair by holding one line LOW and reading who follows. Four answers and none, no angle, and four red LEDs that light when a line is held LOW.

Reads

4sides down, plus none

Read by

a scanno line goes to GND

VCC

3.3or 5 V, to match your board

Wire

6pins, no NC

Turn it over and see the six holes: GND, VCC and the four lines A to D, one per corner of the tilt switch. No line goes to GND, so a sketch scans them. Match VCC to your board.
