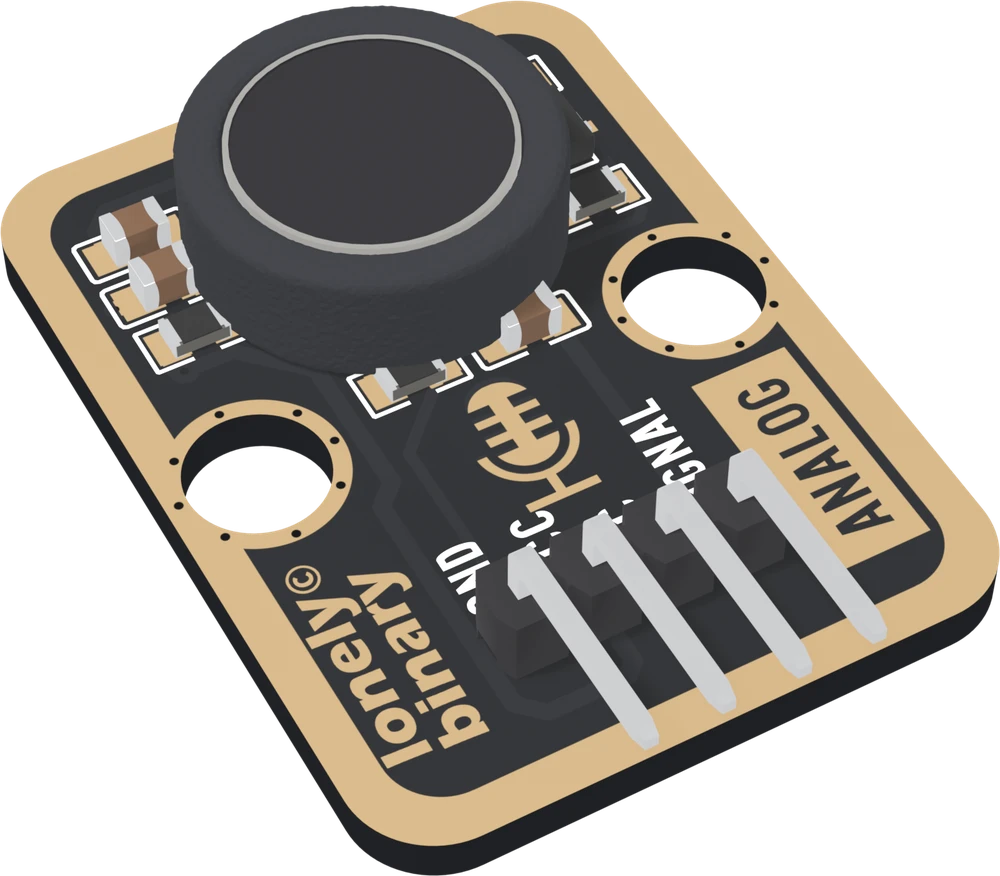

The TK27 at an angle: a black board with a wide gold border, a round black microphone capsule in a foam ring near the top, a small transistor and a few resistors and capacitors beside it, a gold microphone icon, lonely binary up the left edge, ANALOG in a box on the right, and a right-angle four-pin header labelled GND, VCC, NC and SIGNAL.3D
You have thistk27

Analog Microphone

An electret capsule and a one-transistor amplifier on a TinkerBlock board. SIGNAL rests at a level set by the transistor's gain and swings above and below it with sound, in a band of roughly 75 Hz to 1 kHz. Read the peak-to-peak over 50 ms: it hears claps, knocks and loud voices, and it is not a recording microphone.

Hears best
75 Hz to 970Hz from 5 V
Rests at
1.6 to 4.0V from 5 V, by part
A clap
50ms window: read the swing
VCC
3.3or 5 V, to match your board

Turn it over and see the three holes to wire: GND, VCC and SIGNAL. The microphone is the round part at the top; SIGNAL is an analog level that swings when a loud sound arrives.
