28. EEPROM Memory

This lesson uses: Arduino UNO R3 board, TinkerBlock TK31 EEPROM module, jumper wires (or breadboard). First use of I2C: read/write EEPROM with Wire library; outcome: write a value (e.g. 123) to EEPROM, power off and on, read from the same address—data is still there, proving it survives power loss.

1. What is I2C?

I2C (Inter-Integrated Circuit) is a protocol that uses two wires to connect multiple devices; good for sensors, memory, etc.

• SDA: data line
• SCL: clock line
• Each I2C device has an address; the host selects which device to talk to
• On Arduino Uno, I2C pins are fixed: SDA=A4, SCL=A5

This lesson uses I2C to read/write the EEPROM module (data survives power off); Lesson 32 matrix keypad also uses I2C.

2. Wiring

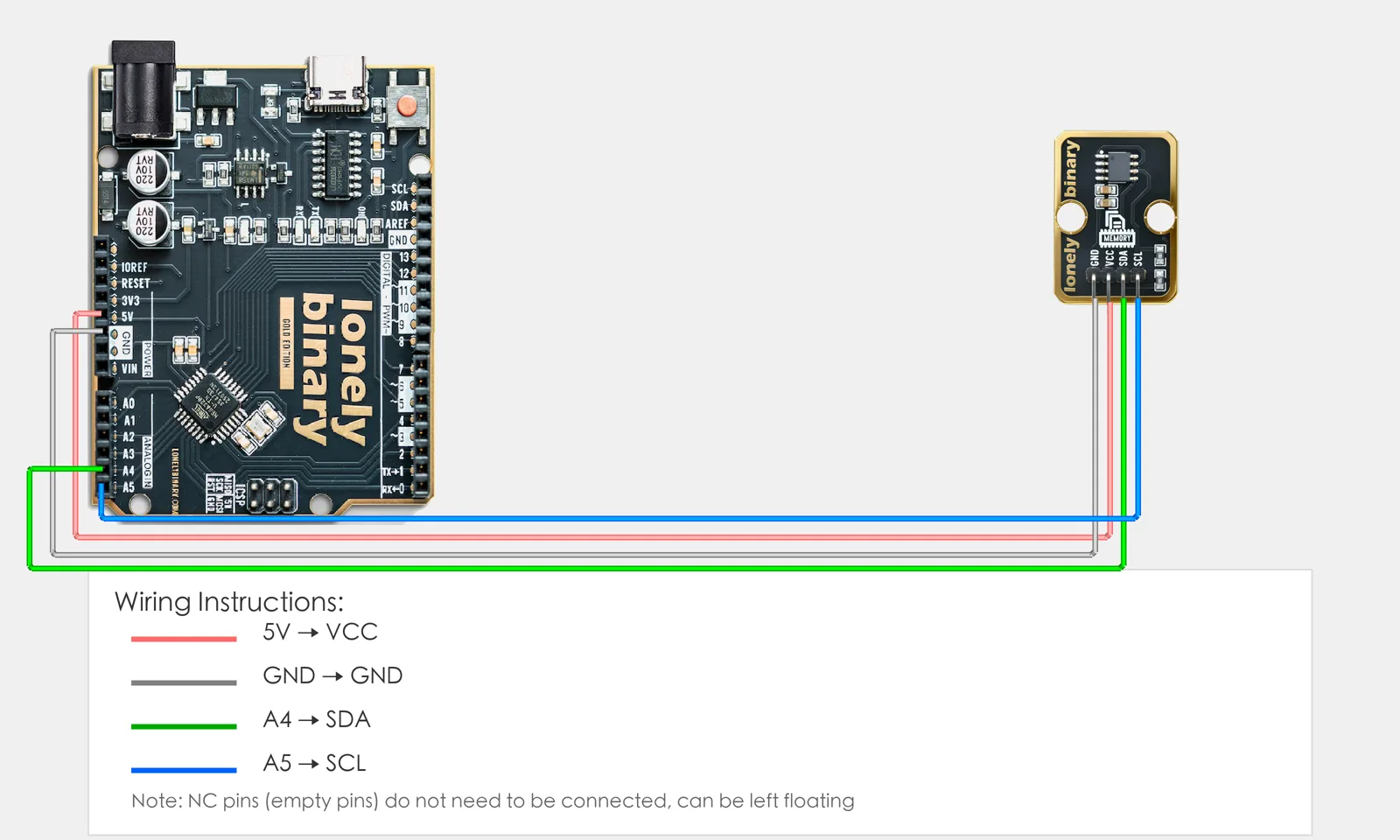

Connect TK31 EEPROM to Arduino (I2C):

• GND → Arduino GND
• VCC → Arduino 5V
• SDA → Arduino A4 (I2C data)
• SCL → Arduino A5 (I2C clock)
• NC leave unconnected

Note: On Arduino Uno, I2C is fixed: SDA=A4, SCL=A5.

3. New sketch

1. Arduino IDE: File → New (or Ctrl/Cmd + N) to create a blank sketch
2. Confirm board and port are selected (same as Lesson 01)
3. Type the code below into the default setup() and loop() yourself

4. Program structure

Same as last lesson: two fixed blocks setup() and loop().

• setup(): Include library, start I2C, write data to EEPROM; runs once.
• loop(): Keep repeating “read from EEPROM → print to serial → wait → repeat”.

Upload, power off and on, and you’ll see the value you stored—that’s “non-volatile.”

5. Code to write

Type the code below at the top of the file and in setup() and loop() (do not copy-paste; typing it yourself helps you remember):

// Read/write TK31 EEPROM over I2C: write then read, verify data survives power loss
#include <Wire.h>

#define EEPROM_ADDR 0x50   // TK31 I2C address (7-bit), often 0x50

void setup() {
  Wire.begin();            // Init I2C (uses A4 SDA, A5 SCL)
  Serial.begin(9600);

  writeEEPROM(0, 123);     // Write byte 123 to address 0
  Serial.println("Data written to EEPROM");
  delay(100);              // Short wait; EEPROM needs time to write
}

void loop() {
  byte data = readEEPROM(0);   // Read one byte from address 0
  Serial.print("Read from EEPROM: ");
  Serial.println(data);
  delay(2000);
}

// Write one byte to address: I2C sends "device addr + addr high + addr low + data"
void writeEEPROM(int address, byte data) {
  Wire.beginTransmission(EEPROM_ADDR);
  Wire.write(address >> 8);    // 16-bit address: high byte first
  Wire.write(address & 0xFF);  // then low byte
  Wire.write(data);            // then data
  Wire.endTransmission();      // end transfer; device starts write
  delay(5);                    // EEPROM write takes a few ms
}

// Read one byte from address: send address, then request 1 byte
byte readEEPROM(int address) {
  byte data = 0;
  Wire.beginTransmission(EEPROM_ADDR);
  Wire.write(address >> 8);
  Wire.write(address & 0xFF);
  Wire.endTransmission();       // end address send
  Wire.requestFrom(EEPROM_ADDR, 1);  // request 1 byte from device
  if (Wire.available()) {
    data = Wire.read();
  }
  return data;
}

Program notes

Overall idea: TK31 is I2C EEPROM; each location has a 16-bit address. Write: send “device addr + 2-byte address + data” over I2C; read: send “device addr + address”, then request 1 byte and get it with Wire.read(). In setup() we write once; in loop() we read and print; after power cycle the value is still 123.

Why 2-byte address: EEPROM has many locations, so address is 16-bit: send high byte address >> 8, then low byte address & 0xFF. Some modules use 1-byte address; check the datasheet.

Delay after write: EEPROM needs a few ms to finish writing; without delay an immediate read might return the old value; 5 ms is enough.

6. Hands-on

1. After entering the code, click Verify (✓) to compile
2. Click Upload (→) to upload to the board
3. Open Serial Monitor (Tools → Serial Monitor, baud 9600)
4. You should see “Data written to EEPROM” then the read value (123)
5. Test persistence: Disconnect power, power on again; the value should still be there

Expected result: As in the figure.

Proceed to Lesson 29.
