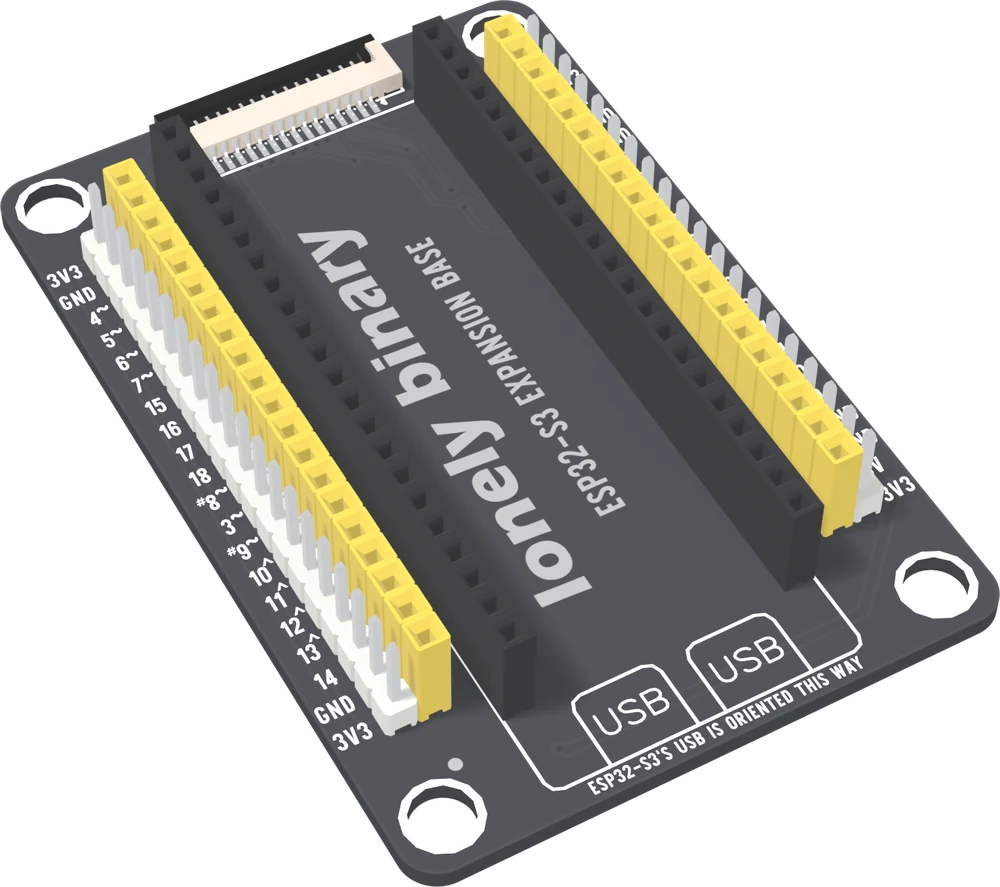

The ESP32-S3 expansion base seen from above at an angle: a black board with four corner mounting holes, a white fifteen-way ribbon socket at the far end, two tall black sockets down the middle for the ESP32-S3, and down each long edge a white strip of upright pins and a yellow strip of pins side by side, with the pin names printed beside them.
VR

View it in VR

This board opens in a VR headset: life-size, or big enough to stand beside, with every pin and every part named where it sits. Open this address in the browser on a headset such as Apple Vision Pro or Meta Quest.

learn.lonelybinary.com/vr/s3base
You have this

ESP32-S3 Expansion Base (2.54 mm)

Four bases for the 44-pin Lonely Binary ESP32-S3. Which GPIOs each one brings out, which way round the board goes, the fifteen-way display plug they all share on the same GPIOs, and the 36 LEDs on the PinPulse that cannot disturb I²C or SPI.

GPIOs out
28
Strips
4 × 20pins at 2.54 mm
Display port
15way FPC

Turn it over, click any pin on either strip, and see which GPIO it is and what the ESP32-S3 can do with it.

Product questions & answers ↓

The four ESP32-S3 bases

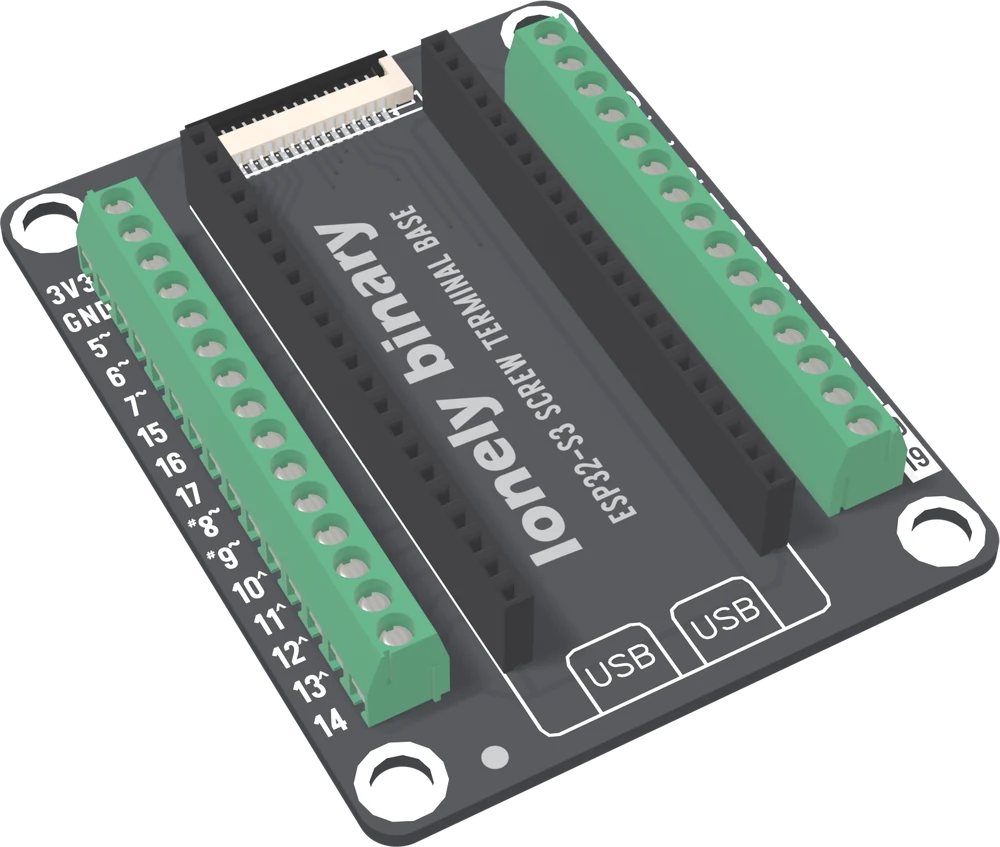

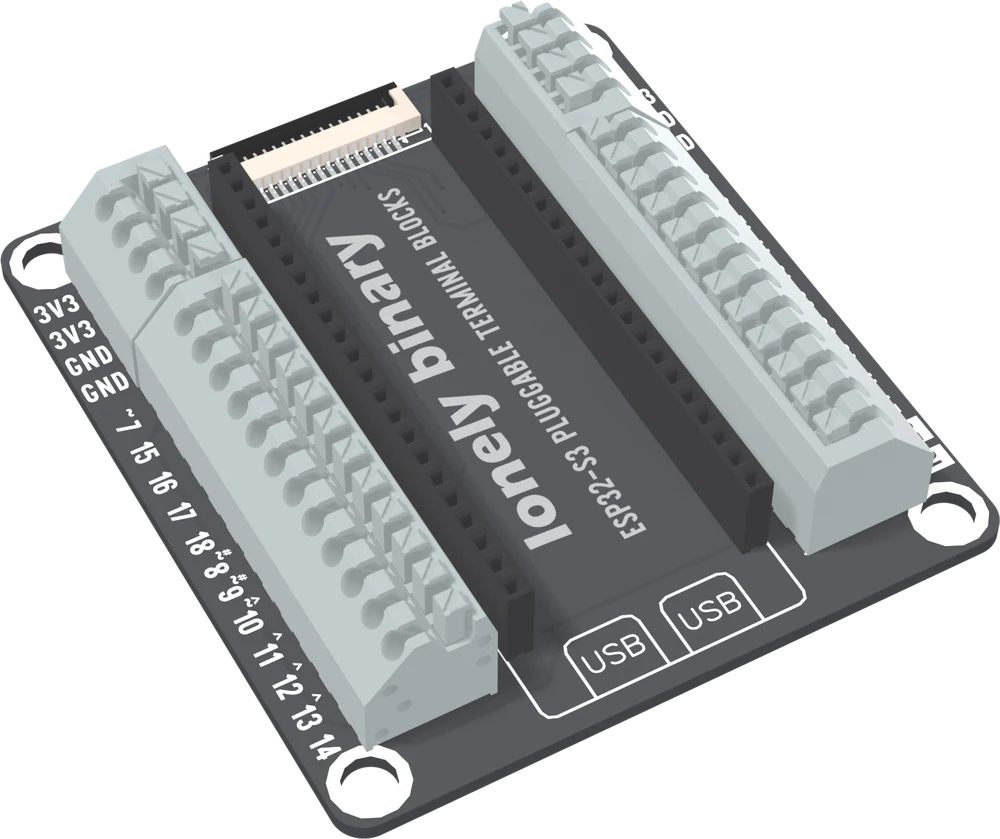

One ESP32-S3, one display plug on the same GPIOs, four ways to wire to it: pins, push-in terminals, screw terminals, or pins with an LED on every GPIO.

Questions people ask first

  • Which way round does the ESP32-S3 go on the base?

    Its USB sockets go over the two boxes printed USB, at the bottom of the base, with the antenna end at the top under the display connector.

    Nothing stops the other way: the two sockets are identical, so the board seats just as firmly end for end. Put in backwards, its 3.3 V regulator output ends up wired to ground, and the board can be damaged for good. Seat the board first and plug the USB cable in second, every time.

  • Where does the power for my sensors come from?

    The base has no regulator, no battery connector and no power input. It is powered through the ESP32-S3's own USB sockets, and every power way on it is one of that board's pins carried out.

    The 3V3 ways are the output of the regulator on the ESP32-S3. The 5V ways are the board's 5V pin: about 4.6 V with a USB cable plugged in, and nothing without one. Nothing on the way is switched, fused or filtered.

  • Can I run a motor, relay or LED strip from the base?

    Not from its power ways. Motors, relays, servos and long LED strips need their own supply, with its ground joined to a GND way on the base, because the ESP32-S3's regulator is small and is also running your sketch.

    Small sensors and a display can take 3V3 and ground from the base. No current rating is quoted for the ways, because none has been checked.

  • How many GPIOs does the Expansion Base bring out?

    28 of the ESP32-S3's 36 GPIOs: sixteen on the left edge and twelve on the right, on 20-hole strips.

    The eight that do not come out are the ones the board already uses: 35, 36 and 37 are the octal PSRAM on the N16R8 module (driving one crashes the board), 43 and 44 are the serial port, and 0, 45 and 46 are sampled at reset to choose how the chip boots. GPIO 19 and 20 (native USB) and GPIO 3 (a boot-time pin that floats by default) do come out, so take care with them.

  • My sensor resets when Wi-Fi connects. Why?

    The ESP32-S3's datasheet gives about 340 mA at the peak while Wi-Fi transmits, and a USB port is meant to supply 500 mA in all. The burst lasts a moment and the 3.3 V rail dips with it; a sensor that resets when Wi-Fi connects is usually seeing that dip.

    Put a capacitor of about 100 uF between 3V3 and ground, close to the sensor. It holds the rail up for the length of the burst. The base has none of its own, because it has no power parts at all.
