steam sensor/The board/01. The four pins
The board · 01 of 9

The four pins

Four pins, three of them wired: GND on the square pad, VCC to every other loop of the pattern, and SIGNAL, an analog voltage that sits at 0 V dry and rises as water bridges the loops. NC is connected to nothing. There is no HIGH or LOW here: SIGNAL goes to an analog pin.

Three wires and a spare

The header is four right-angle pins, 2.54 mm apart, printed GND, VCC, NC and SIGNAL from left to right with the loops facing you. GND is on the square pad, and that pad is the only way to tell four identical holes apart. Count from it.

The four pins, and the loops
Show
Pins
4
Pins to wire
3
Output
analog
SIGNAL is a voltage, not a HIGH or a LOW: 0 V dry, rising as water bridges the loops, up to VCC. Wire it to an analog pin and read it with analogRead. ANALOG on the front says so.

Pick a pin to see where it goes. GND is where the 1 MΩ and the 100 nF end. VCC reaches four of the seven loops of the pattern and nothing else. SIGNAL is the voltage the pattern makes, through a 150 Ω. NC is in no net at all.

ANALOG, not HIGH or LOW

The front prints ANALOG up its right edge, and it means it. Dry, SIGNAL is 0 V. Water across the loops lifts it, a little for a drop, most of the way to VCC for a fogged or splashed board. Read it with analogRead, on an analog pin. The page this book replaces said SIGNAL went HIGH when it detected steam, and wired it to a digital pin; nothing on the board makes a HIGH or a LOW.

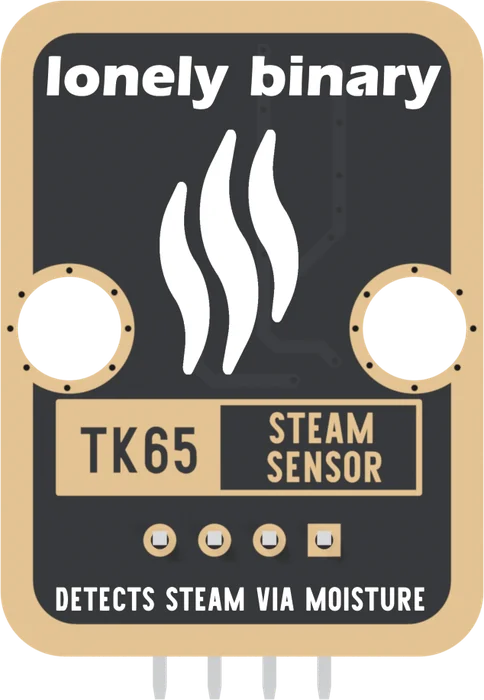

The back of the TK65, header at the bottom: a black board with a gold border, lonely binary across the top, three white wisps of steam in the middle between two round gold-ringed LEGO holes, a gold box printed TK65 beside STEAM SENSOR, four header pads with the square one on the right, and DETECTS STEAM VIA MOISTURE along the bottom edge. No pin names are printed on this side.
The back. Turned over, the square pad is on the right, and it is still GND.

VCC is not a free choice

A soaked board can put VCC itself on SIGNAL, so VCC decides the highest voltage your analog pin sees. Wire it to the voltage your board's pins run at: 3V3 on an ESP32, an ESP32-S3 or a Pico, 5V on an Uno. A divider made of water shows why.

When it does not work

Which end of the header is GND?

The square pad. From the front, loops up and pins pointing down, it is the left-hand pin, and the order is GND, VCC, NC, SIGNAL. The back prints no pin names; turned over, the square pad is on the right and it is still GND.

Can SIGNAL go to a digital pin?

It will read something, but not what you want. SIGNAL is a voltage anywhere from 0 V to VCC, and a drop of condensate may lift it only a few per cent. A digital pin calls all of that LOW. Use an analog pin: A0 on an Uno, GP26 on a Pico.

Should I connect NC to something?

No. It is soldered to a pad that no trace reaches, so it makes no difference either way. It is there so every TinkerBlock block has the same four-pin header and one cable fits all of them.
